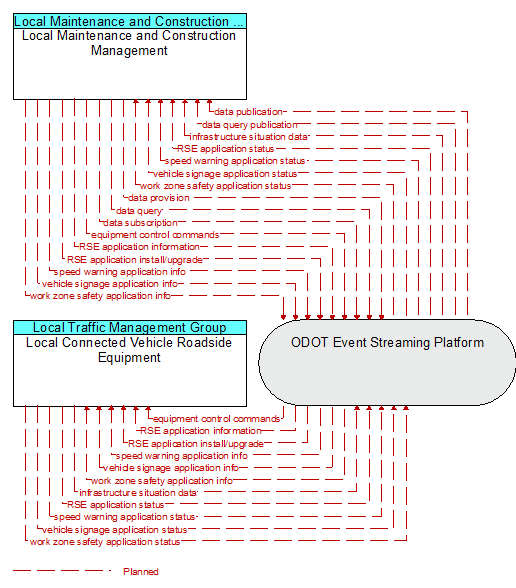

Interface: Local Maintenance and Construction Management - Local Connected Vehicle Roadside Equipment
Architecture Flow Definitions
equipment control commands (Planned ) Applicable ITS Standards
System–level control commands issued to the RSE such as reset and remote diagnostics.
infrastructure situation data (Planned ) Applicable ITS Standards
Aggregated and filtered vehicle data collected from vehicle safety and convenience systems that are indicative of infrastructure condition including traction control status, anti–lock brake status, accelerometer status, and other collected vehicle system status and sensor information. This information flow represents the aggregated and filtered environmental data sets that are provided by the RSE to the back office center.
RSE application information (Planned ) Applicable ITS Standards
RSE application configuration data and parameters that are used to control applications and configure the application for a specific local use. This flow also supports remote control of the application so the application can be taken offline, reset, or restarted.
RSE application install/upgrade (Planned ) Applicable ITS Standards
This flow supports remote installation and update of software applications residing in the RSE. It supports transmission of the secure software installation files, including executable application code and associated support files.
RSE application status (Planned ) Applicable ITS Standards
Monitoring of RSE application status including current mode, operational status, and configuration settings. It includes the status of installed applications and the application–specific data provided by the RSE.
speed warning application info (Planned ) Applicable ITS Standards
Roadway configuration data, current speed limits including time of day, week, or season speed limits as necessary, and warning parameters and thresholds. This flow also supports remote control of the application so the application can be taken offline, reset, or restarted.
speed warning application status (Planned ) Applicable ITS Standards
Speed warning application status reported by the RSE. This includes current operational state and status of the RSE and a record of measured vehicle speeds and notifications, alerts, and warnings issued.
vehicle signage application info (Planned ) Applicable ITS Standards
In–vehicle signing application configuration data and messaging parameters. This flow provides a list of regulatory, warning, and information messages to be displayed and parameters that support scheduling and prioritizing messages to be issued to passing vehicles. This flow also supports remote control of the application so the application can be taken offline, reset, or restarted.
vehicle signage application status (Planned ) Applicable ITS Standards
In–vehicle signing application status reported by the RSE. This includes current operational state and status of the RSE and a log of messages sent to passing vehicles.
work zone safety application info (Planned ) Applicable ITS Standards
Work zone safety application configuration data and warning parameters and thresholds. This includes work zone configuration including geofenced crew areas and travel lanes that provide a safety boundary between work zone personnel and passing vehicles. This flow also supports remote control of the application so the application can be taken offline, reset, or restarted.
work zone safety application status (Planned ) Applicable ITS Standards
Work zone safety application status reported by the RSE. This includes current operational state and status of the RSE and a record of identified work zone safety alerts and warnings issued.
