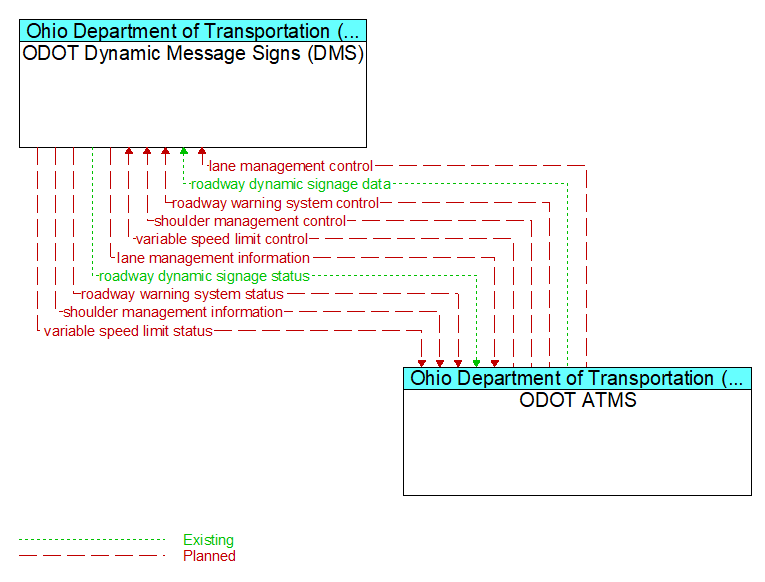

Interface: ODOT Dynamic Message Signs (DMS) - ODOT ATMS
Architecture Flow Definitions
lane management control (Planned ) Applicable ITS Standards
Information used to configure and control dynamic lane management systems.
lane management information (Planned ) Applicable ITS Standards
System status of managed lanes including current operational state, violations, and logged information. This includes lane usage information including both traditional traffic flow measures and special information associated with managed lanes such as measured passenger occupancies. It also includes the operational status of the lane management equipment.
roadway dynamic signage data (Existing) Applicable ITS Standards
Information used to initialize, configure, and control dynamic message signs. This flow can provide message content and delivery attributes, local message store maintenance requests, control mode commands, status queries, and all other commands and associated parameters that support remote management of these systems.
roadway dynamic signage status (Existing) Applicable ITS Standards
Current operating status of dynamic message signs, highway advisory radios, or other configurable field equipment that provides dynamic information to the driver.
roadway warning system control (Planned ) Applicable ITS Standards
Information used to configure and control roadway warning systems.
roadway warning system status (Planned ) Applicable ITS Standards
Current operating status of roadway warning systems.
shoulder management control (Planned ) Applicable ITS Standards
Information used to configure and control systems that allow use of a shoulder as a lane for vehicular traffic.
shoulder management information (Planned ) Applicable ITS Standards
System status including current operational state, violations and logged information.
variable speed limit control (Planned ) Applicable ITS Standards
Information used to configure and control variable speed limit systems including the equipment used to provide current speed limits and other information to drivers and the equipment used to monitor traffic and environmental conditions along the roadway.
variable speed limit status (Planned ) Applicable ITS Standards
Current operating status of the variable speed limit systems including the state of the equipment.
